C Posts
Classification: Guardrail Beam
Brand Name: FORST
Brief Introduction:
Guardrail BeamC PostSpecifications:

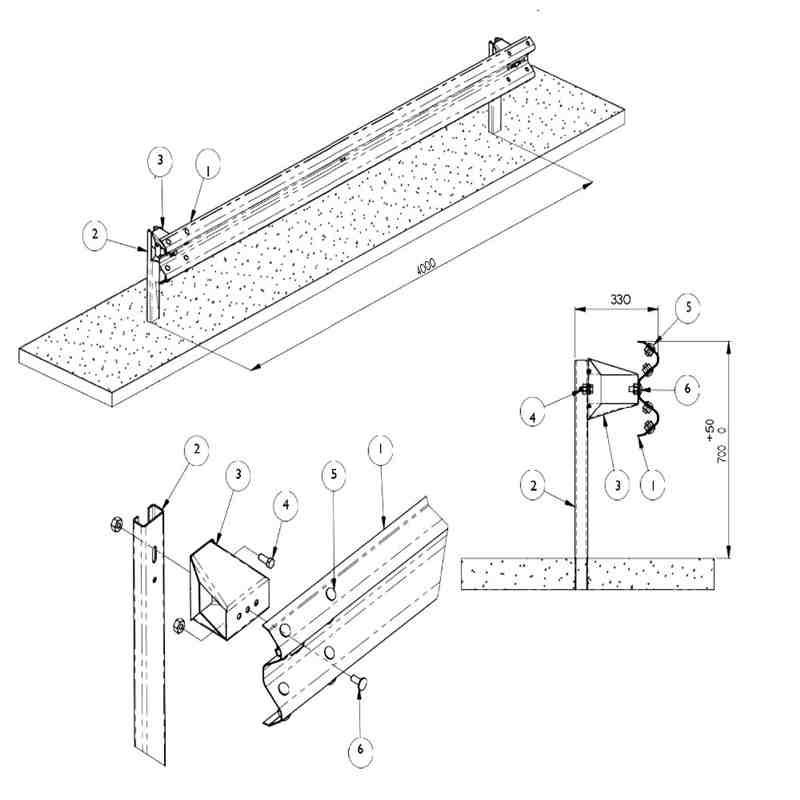

The C post of the Guardrail Beam is usually composed of the following parts:
1. Base: The base is the supporting part connecting the column and the ground, and is generally made of concrete.
2. Column: The column is usually made of reinforced concrete or steel, and bears the horizontal and vertical loads of the guardrail beam.
3. Support arm: The horizontal support part connecting the column and the guardrail beam. The support arm is usually welded by steel plate.
4. Connecting piece: The steel connecting piece connecting the column and the support arm and the guardrail beam is usually connected by bolts. The above is the basic structure of the guardrail beam C post. The design of the C post of the guardrail beam needs to meet certain requirements, including load bearing capacity, protective effect, durability, etc., to ensure its role in road traffic safety.
Guardrail Beam C Posts Specifications:
Normal Sizes | 1830*120*62.5*25 Thickness :4-6mm |
Raw Material | Q235B/Q355B (equivalent to S235JR/S355JR) |
Surface Treatment | Hot dipped galvanized or powder/plastic sprayed coating |
The Thickness of Galvanized | 550 g/m2 (1.80 oz/ft2 ) minimum single-spot. |
Features | Great corrosion resistant, high intensity, long and durable, to make the accurate holes, lead to easy |
Relevant Parts Required for Guardrails: | Hot dipped Highway Guardrail, Post, Spacer (C, U and Sigma types etc) and Fasteners, Bolts&Nuts,Terminal End,Reflector |
Packing Details | Standard Export Package |
MOQ | 10tons or one 20 feet container |
Port | QINGDAO |
Annual production capacity | 8000tons/year |
Trade terms | FOB; CIF; CFR; EXW, DDP |
Payment Terms | T/T; L/C at sight |
Lead time | 7-10 days after deposit |
We are Guardrail Supplier , other special specifications are as per customer requirements or drawings | |

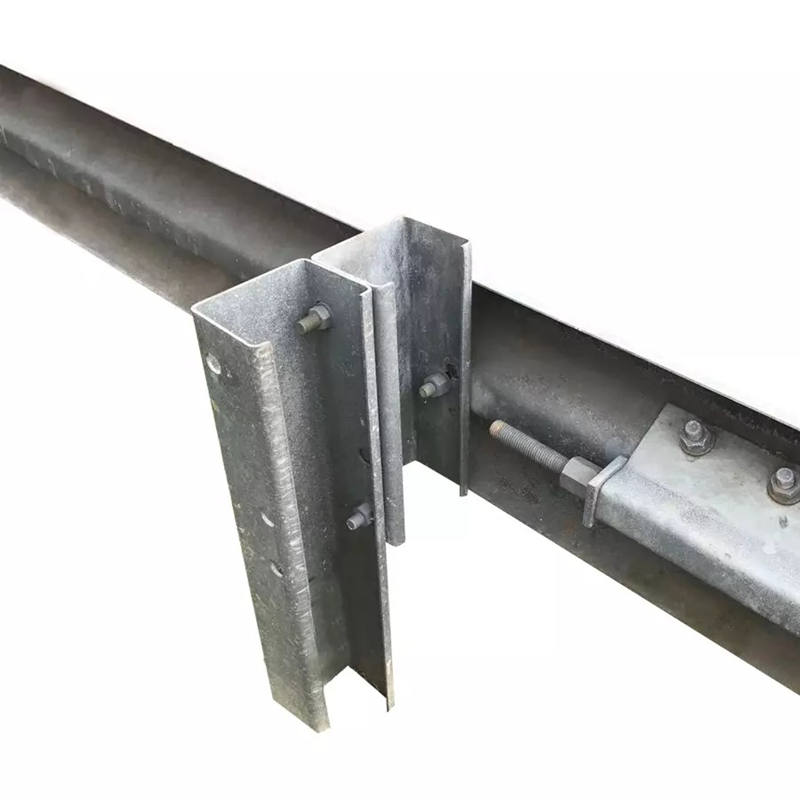

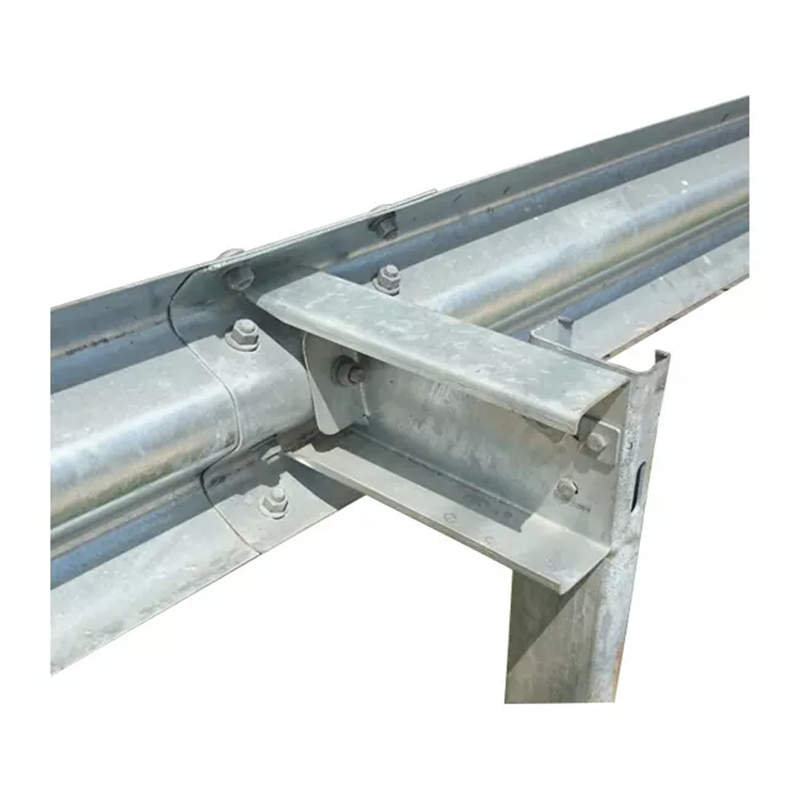

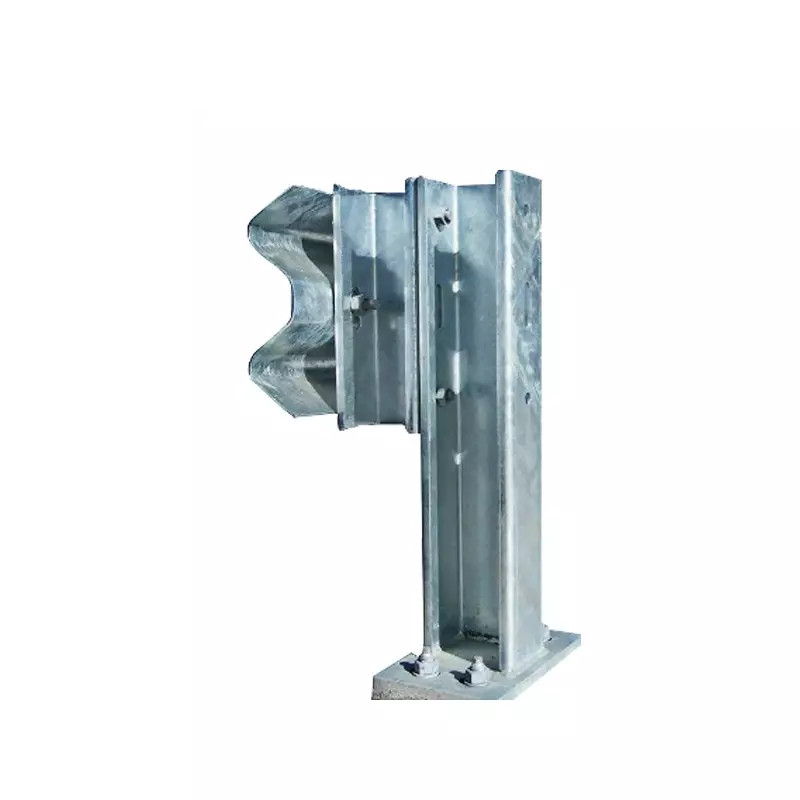

Product picture of C posts

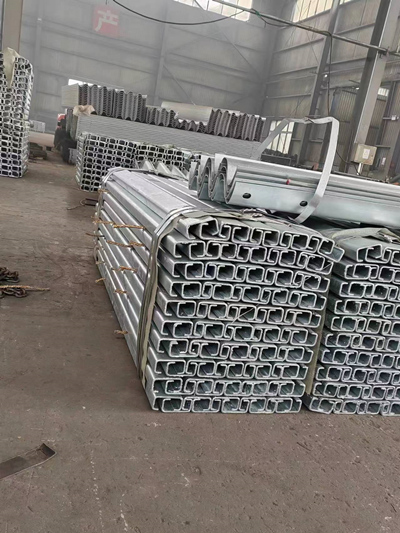

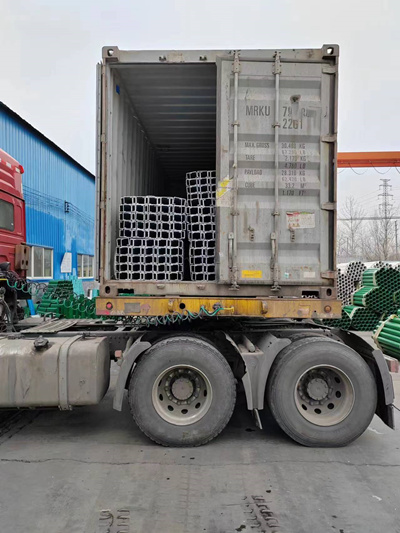

Packaged and shipped of C posts
