Guradrail U Post
Classification: Guardrail U Post
Brand Name: FORST
Brief introduction:
The U post of the guardrail is made by cutting the cutting board and bending the board. The specific processing process is as follows:
1. Prepare processing equipment: including shearing machine, bending machine, etc.
2. Determine the length and width of the slats: Determine the length and width of the guardrail U post according to actual needs, and then mark them on the board.
3. Cut the slats: Use a shearing machine to cut the board into slats according to the required length.
4. Slat bending: Put the cut slats into the bending machine and bend them section by section to form a U-shaped column.
U-post is a kind of metallic with a glide segment just like the english letter "u". its number one tendencies are: immoderate strain, extended assist time, clean installation and smooth deformation.
Quick Details of Guradrail U Post：
Place of Origin | Shandong, China | Brand Name: | Forst |
Product name | U Post | Material | S235JR S355JR |
Surface treatment | Hot Dipped Galvanized | Feature | Impact and corrosion resistant |
Certificate | ISO9001,AASHTO M180 | Specification | 150*75*5*1830(mm) 178*76*6*1830(mm) |
Application: | Support guardrail beam | Color | Silver white |
MOQ: | 100pcs | Packaging Details | Bundled |
Shipping port | Qingdao Tianjin or other | Supply Ability | 15000 Ton/ per Year |

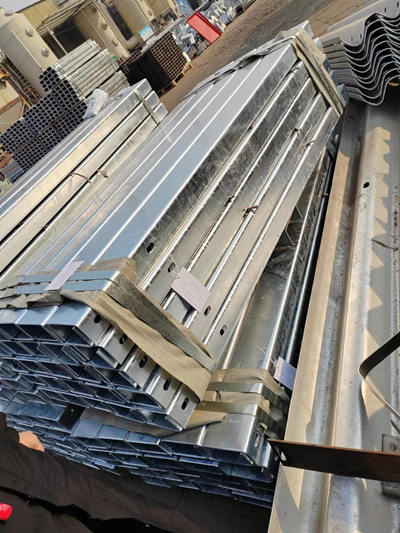

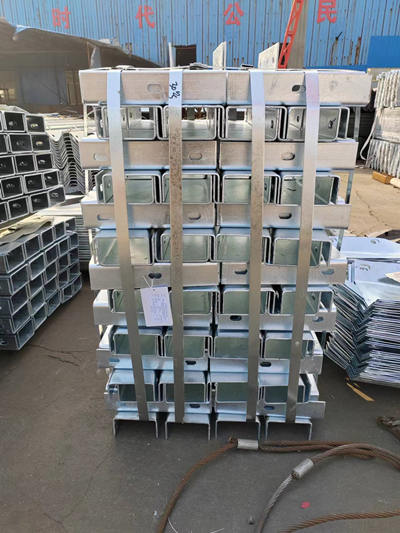

Product picture of Guradrail U Post：
Specification of Steel Guardrail U Post：
| Normal Sizes | 150*75*5*1830mm;178*76*6*1830 Other specifications can be customized |
| Materail | S235JR,S355JR |
| Surfacce treatment | Hot dipped galvanized or plastic sprayed coating |
| Applicabele Standards | JT/T2811995(Corrugated Sheet Steel Beams For Expressway Guardrail - China), AASHTO M180(Corrugated Sheet Steel Beams For Highway Guardrail - USA), RAL RG620 (German) or any other International Standards |
| Base Steel | Grade S235JR ( according to DIN EN 10025 and Gr. Daccording to ASTM A283M) or S355JR (ASTM A529M 1994) |
| Zinc layer thickness | 550g/m2 (40µ) or 1100 g/m2 (80µ) or 1200 g/m2 (85µ) or as per your request |
| Features | Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security,environmental protection, etc. |
| MOQ | 100pcs |
| Price Terms | FOB,CFR,CIF |
| Payment Terms | T/T,L/C at sight |

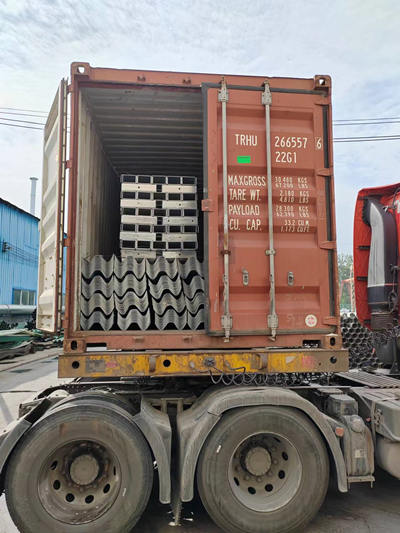

Packaged and shipped of Guradrail U Post：
