W Guardrail H post
Classification: Guardrail H Post
Brand Name: FORST
Brief Introduction:
Steel Guardrail Beam H Post Specifications:
As one of the main supporting structures of the guardrail system, the H post of the guardrail beam can share the impact force of the vehicle and avoid the direct crossing or lateral displacement of the vehicle after the collision, thereby reducing the lateral damage range of the vehicle and the impact on personnels damage.
The storage of H-post should follow the following principles:
1. In the storage process, try to avoid contact with harmful substances, such as paint, acid, alkali, etc.
2. Remove oil and dust from the surface of the column and keep the surface clean.
3. The storage site should be smooth and free of accumulation and weeds to avoid fouling of H-beam columns.
4. H steel post should be kept away from direct contact with water or moisture during storage. Moisture pads or physical isolation methods can be used.
Quick Details of Guardrail H Post
Place of Origin | Shandong, China | Brand Name: | FORST |
Product name | H Post | Material | S235JR S355JR |
Surface treatment | Hot Dipped Galvanized | Feature | Impact and corrosion resistant |
Certificate | ISO9001,AASHTO M180 | Specification | 150*100*4.3*5.5*1830(mm) 100*50*25*5*1500(mm) |
Application: | Support guardrail beam | Color | silver white |
MOQ: | 100pcs | Packaging Details | Bundled |
Shipping port | Qingdao Tianjin or other | Supply Ability | 15000 Ton/ per Year |

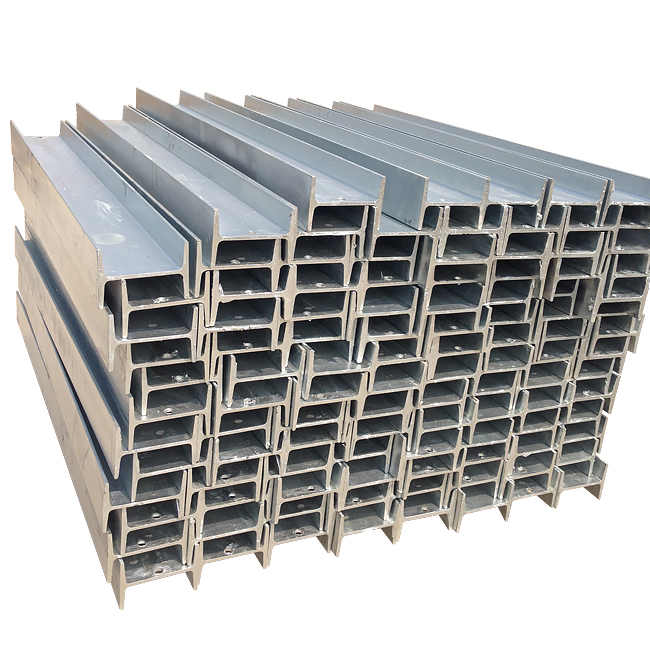

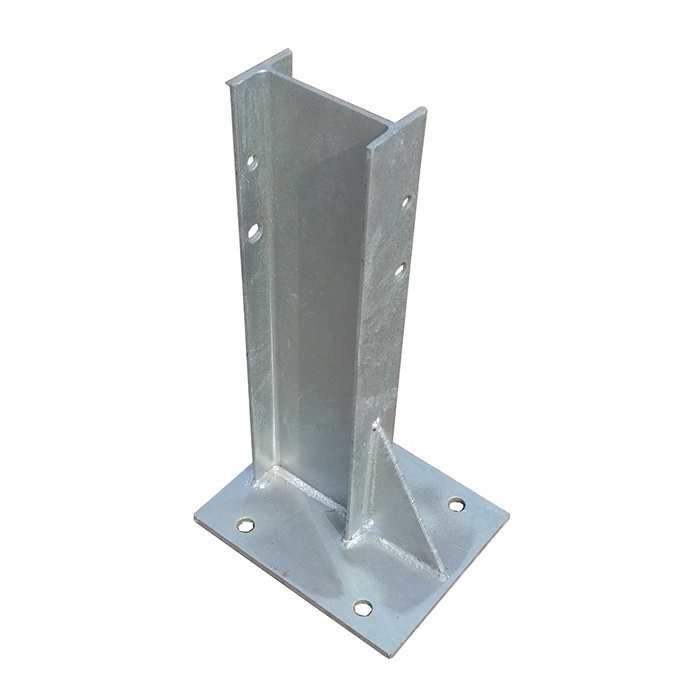

Product picture of Guardrail H Post
Specification of Guardrail H Post:
Normal Sizes | 150*100*4.3*5.5*1830(mm) 100*50*25*5*1500(mm) Other specifications can be customized |
Materail | S235JR,S355JR |
Surfacce treatment | Hot dipped galvanized or plastic sprayed coating |
Applicabele Standards | JT/T2811995(Corrugated Sheet Steel Beams For Expressway Guardrail - China), AASHTO M180(Corrugated Sheet Steel Beams For Highway Guardrail - USA), RAL RG620 (German) or any other International Standards |
Base Steel | Grade S235JR ( according to DIN EN 10025 and Gr. Daccording to ASTM A283M) or S355JR (ASTM A529M 1994) |
Zinc layer thickness | 550g/m2 (40µ) or 1100 g/m2 (80µ) or 1200 g/m2 (85µ) or as per your request |
Features | Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security,environmental protection, etc. |
MOQ | 100pcs |
Price Terms | EXW,FOB,CFR,CIF,DDP |
Payment Terms | T/T,L/C at sight |
Packaged and shipped of Guardrail H Post
